Schmitt Trigger (CB24848E)

Details
Written by: Newton C. Braga

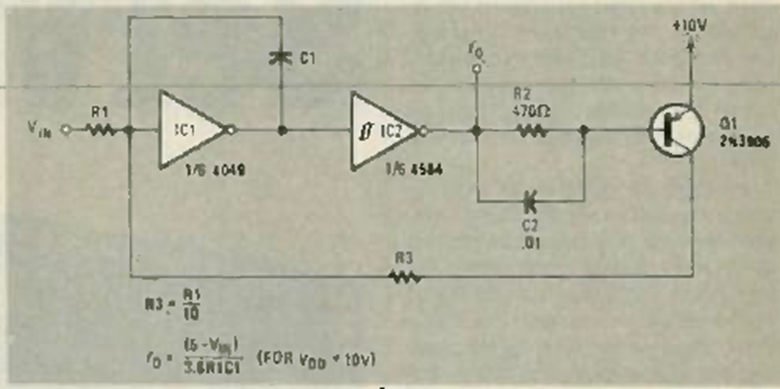

Found in the September 1984 issue of Radio Electronics magazine, this circuit uses common components. The trigger characteristics are given by the formula in the diagram.




| Clique na imagem para ampliar |
