Digital timer with display reading (CB24447E)

Details
Written by: Newton C. Braga

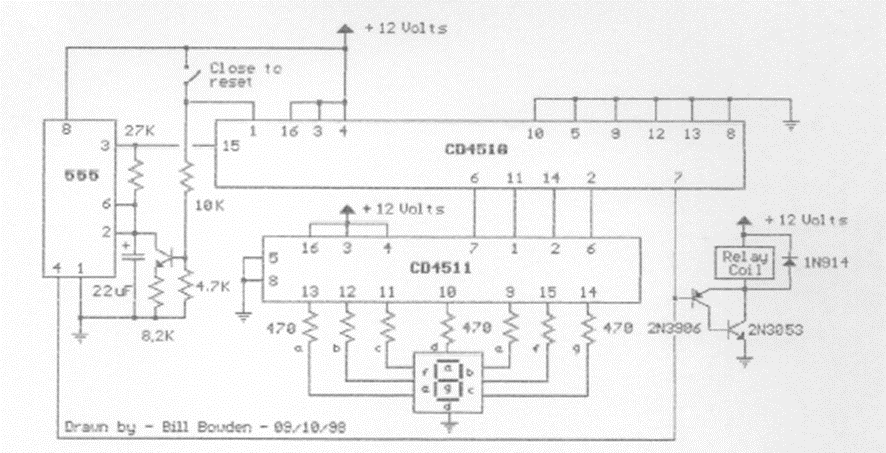

The timing steps of this circuit are indicated by a 7-segment display. The circuit was found in documentation from the 90s. The capacitor next to the 555 determines the timing steges.




| Clique na imagem para ampliar |
