555 Operation Selection (CB24408E)

Details
Written by: Newton C. Braga

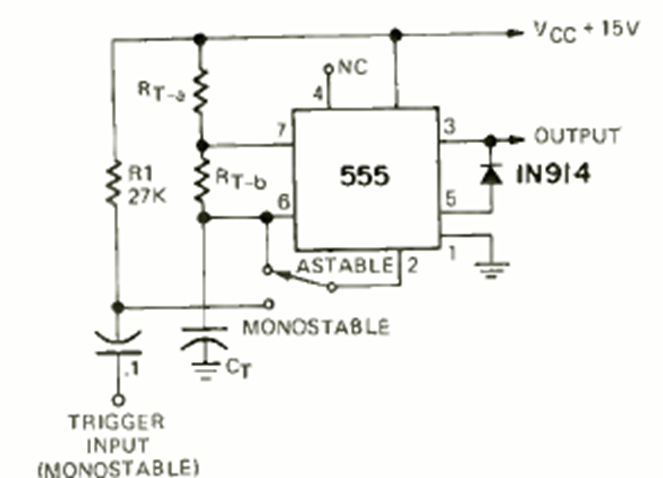

This interesting feature allows you to select astable or monostable operation of a 555. The circuit has component values ​​according to the desired operation.
