Voltage Controlled Amplifier (CB24772E)

Details
Written by: Newton C. Braga

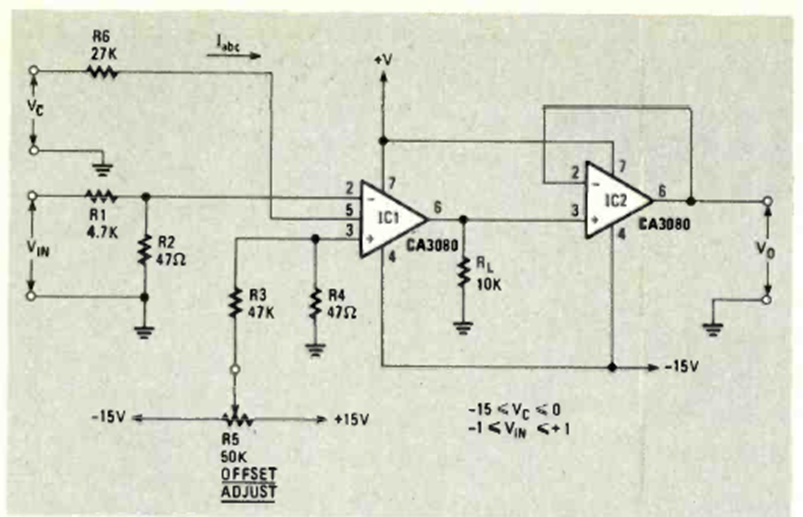

This amplifier circuit with gain between 0 and 96 was found in the December 1983 issue of Radio Electronics magazine. The power supply must be 15 V.
