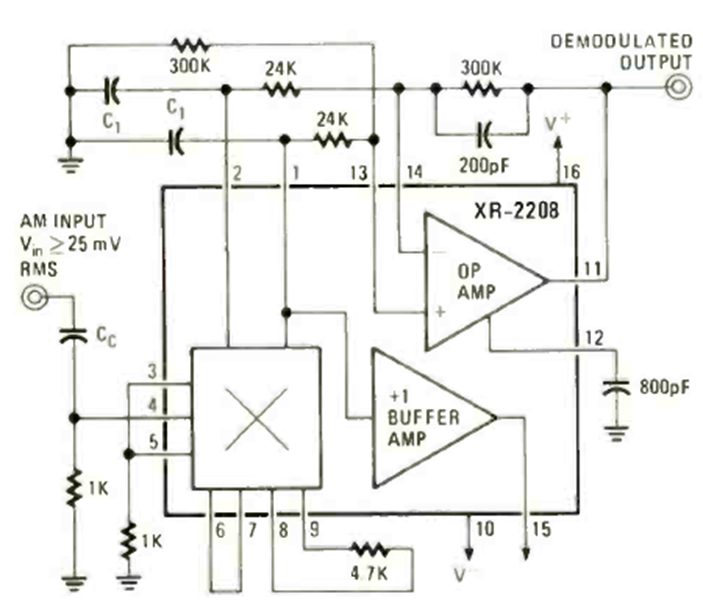

Synchronized AM Detector (CB24548E)

Details
Written by: Newton C. Braga



This circuit was found in the April 1978 Radio Electronics magazine. The power supply must be symmetrical, and the maximum operating frequency is around 100MHz.




| Clique na imagem para ampliar |
