Tachometer and Speed ​​Alarm (CB24018E)

Details
Written by: Newton C. Braga

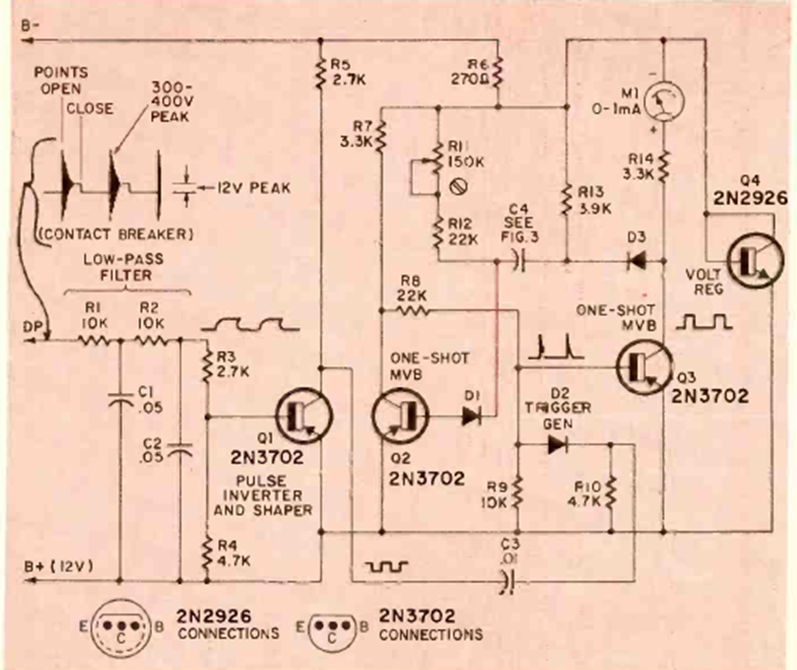

This circuit was found in the April 1970 Radio Electronics magazine. The dual function circuit uses 4 transistors and is connected to the vehicle's contact breaker.
