Light Sensitive Timer (CB24796E)

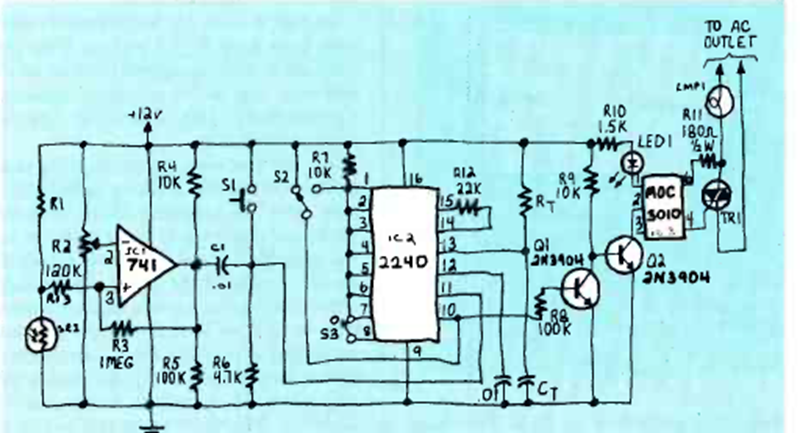

This circuit was found in the April 1984 issue of Radio Electronics magazine. The circuit directly drives a TRIAC to a high-power load.
