Sequential Flasher (CB24674E)

Details: Written by: Newton C. Braga

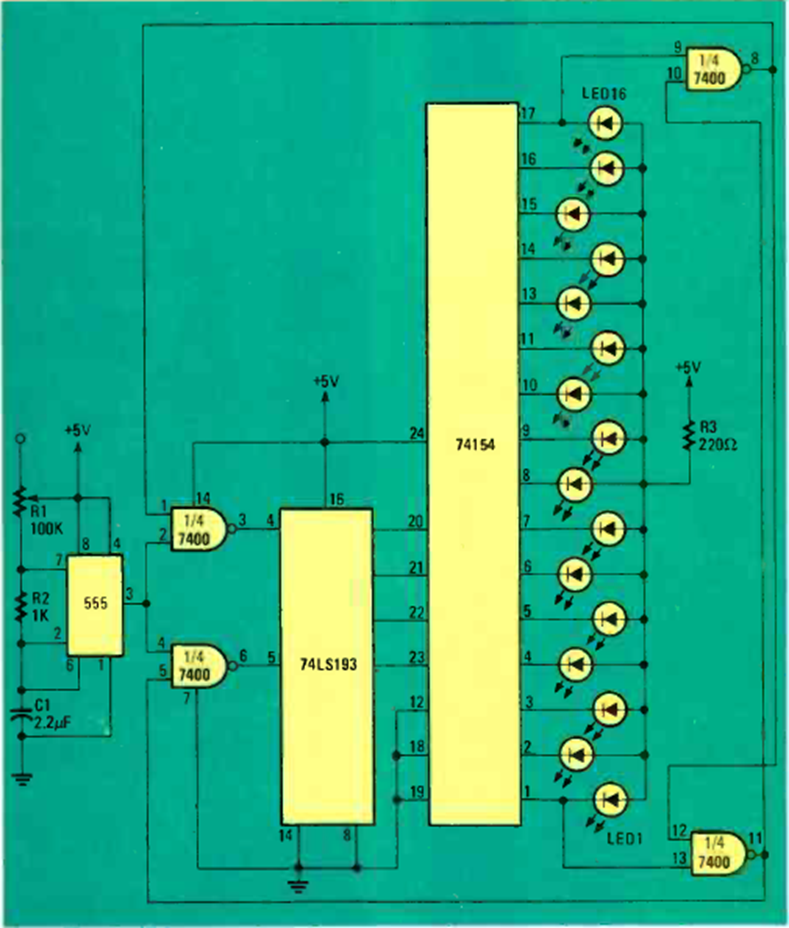

This TTL sequential flasher circuit was found in the January 1981 issue of Radio Electronics magazine. It is powered by 5 V. The frequency can be adjusted by R1.
