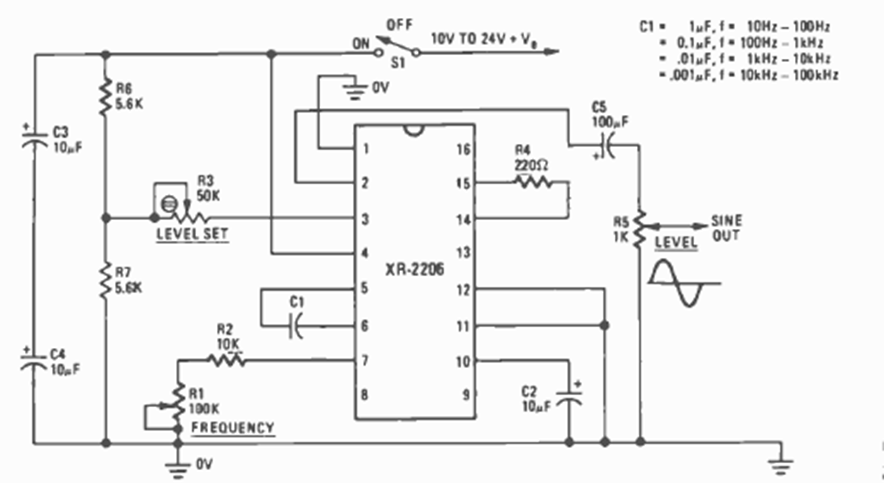

The figure shows how to generate excellent quality sinusoidal signals using the XR2206. The circuit is from Radio Electronics from April 1977. The table next to the diagram gives the capacitor values for different frequency ranges.
