Logic test 555 CIR24877S (CB24915E)

Details: Written by: Newton C. Braga

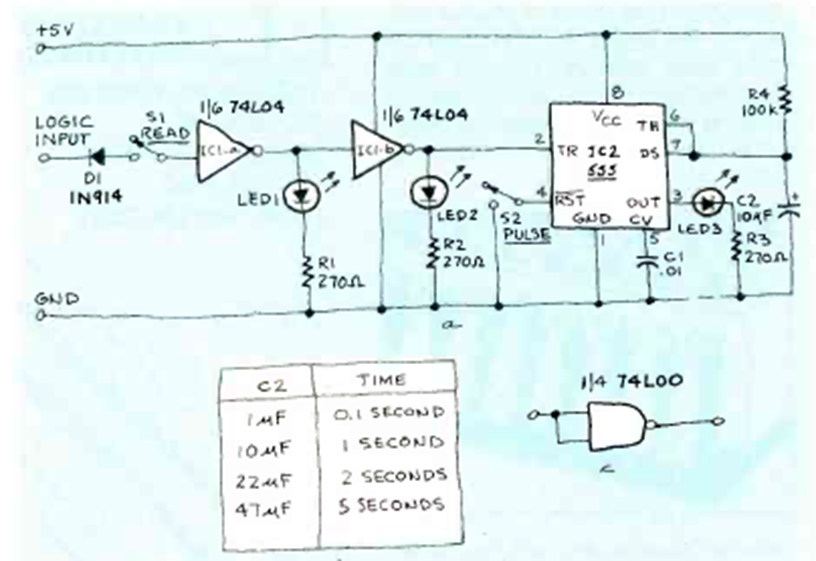

This simple logic test circuit with 3 LEDs was found in October 1985 Radio Electronics magazine. The power supply is according to the logic, and this version is indicated for TTL.

| Clique na imagem para ampliar |
