Triggered Oscillator 4011 (CB24859E)

Details
Written by: Newton C. Braga

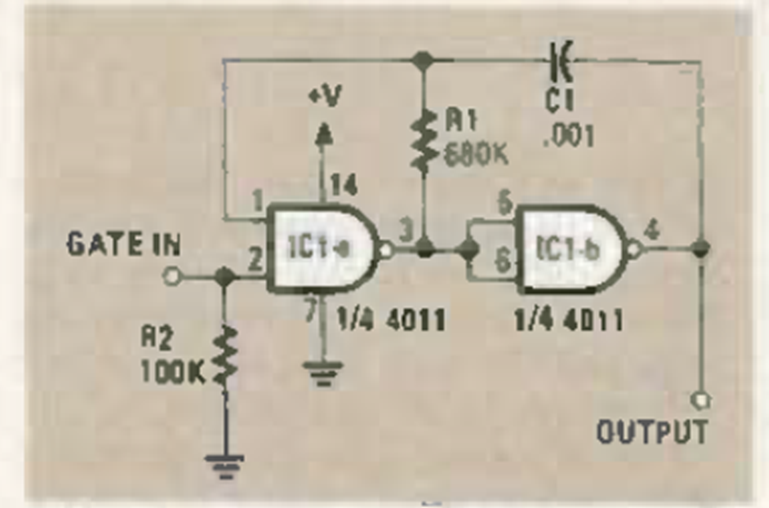

We found this circuit in the November 1984 Radio Electronics magazine. The base frequency is given by C1. The power supply can be between 3 and 12 V.
