Neon Fuse Blown Monitor (CB24104E)

Details
Written by: Newton C. Braga

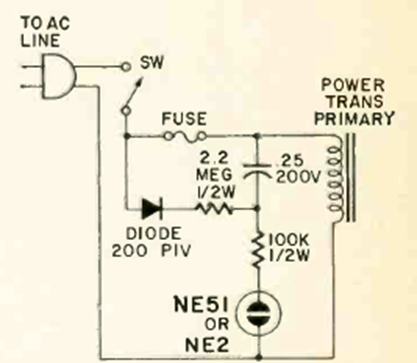

This circuit was found in the January 1971 Radio Electronics magazine. It keeps the light flashing if the fuse blows.
