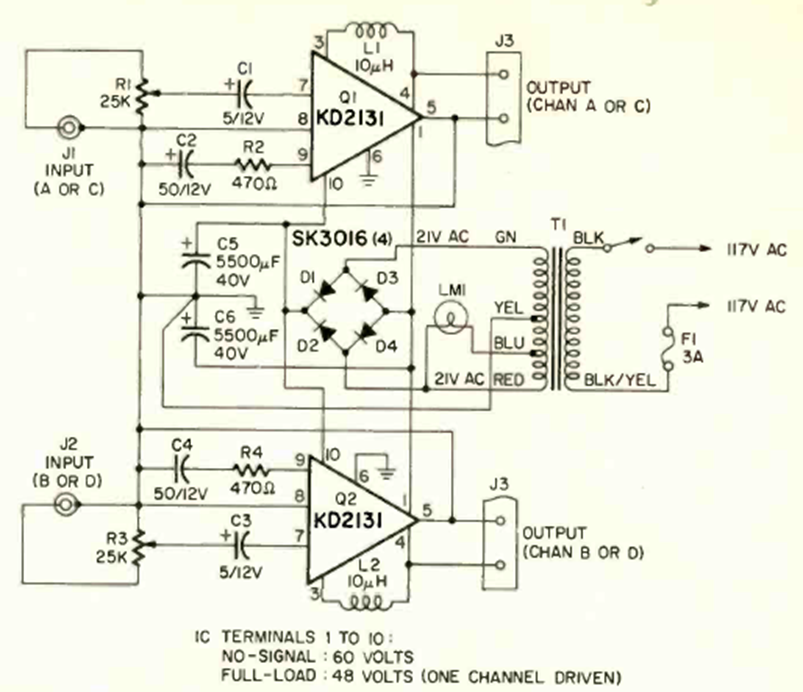

This is half of a 4-channel amplifier from a system published in the October 1971 issue of Radio Electronics magazine. The amplifier uses a hybrid module from the period. Its power is 50 W per channel, which totals 200 W for the system. Distortion is less than 1%. The transformer is rated at 42 V x 1 A.
