Signal Generator (CB24203E)

Details
Written by: Newton C. Braga

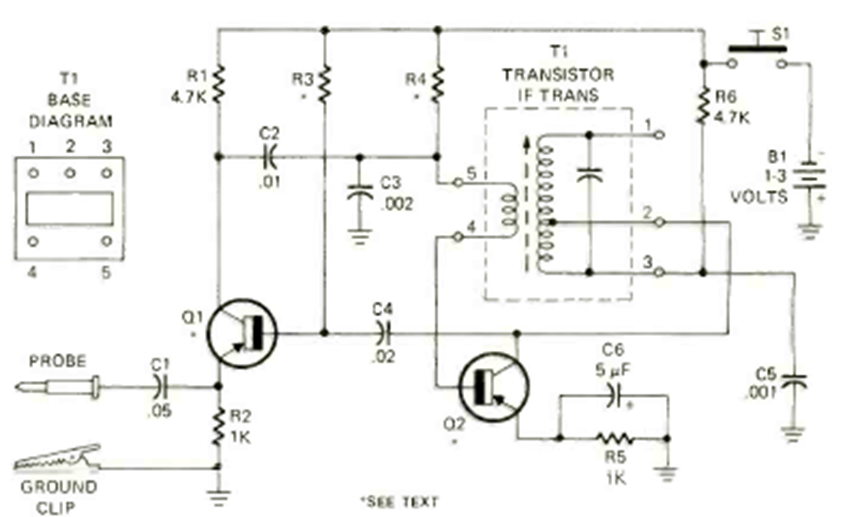

This two-transistor circuit was found in the August 1972 issue of Radio Electronics magazine. The coil is a common IF transformer for transistor radios. The signal generated is rich in harmonics.




| Clique na imagem para ampliar |
