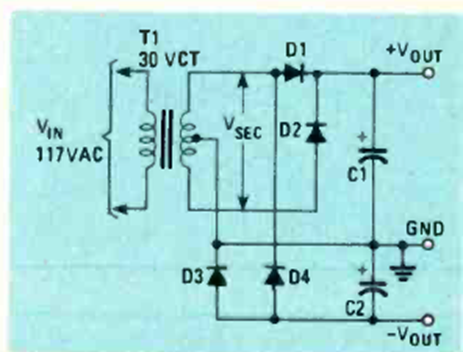

This circuit with 4 diodes was found in the July 1984 Radio Electronics magazine. The voltage of the transformer determines the output voltage and the working voltage of the capacitors.
Symmetrical power supply (CB24818E)
