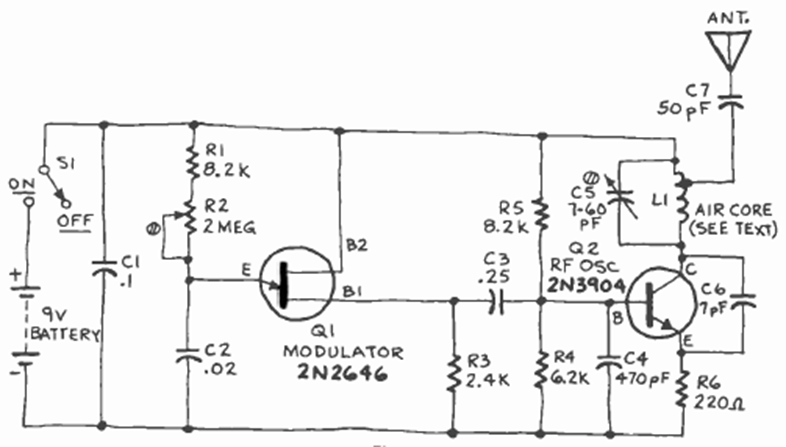

This circuit can send signals in both the VHF and FMN bands with a range of a few tens of meters. The circuit is from Radio Electronics from December 1980. For the FM band the coil has 4 + 4 turns of 26 or 28 wire with 0.5 cm diameter without a core.
