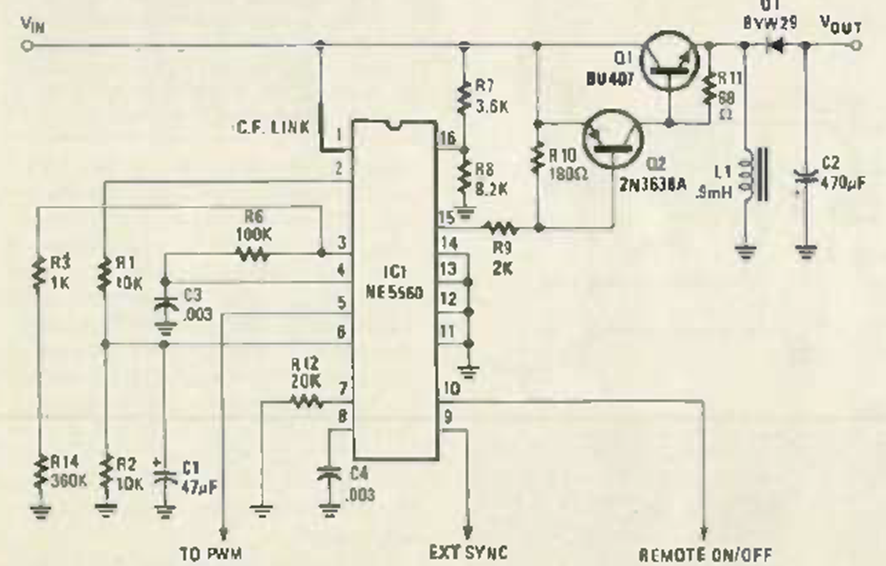

The output of this circuit using the NE5560 has the opposite polarity of the input voltage. The circuit is from a Radio Electronics magazine from February 1980. The power transistor must be equipped with a heat sink.
