VCO CMOS 4049 (CB24858E)
- Details
- Written by: Newton C. Braga

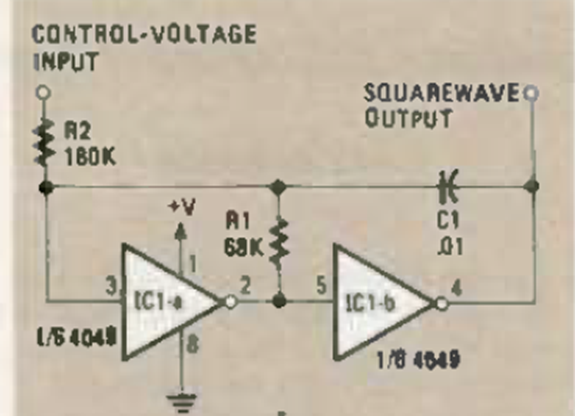

This is a simple voltage-controlled oscillator using the 4049. The base frequency is given by C1. The generated signal is rectangular, and the supply voltage can be between 3 and 12 V.
