FCS 8100 Clock Module (CB24495E)

Details: Written by: Newton C. Braga

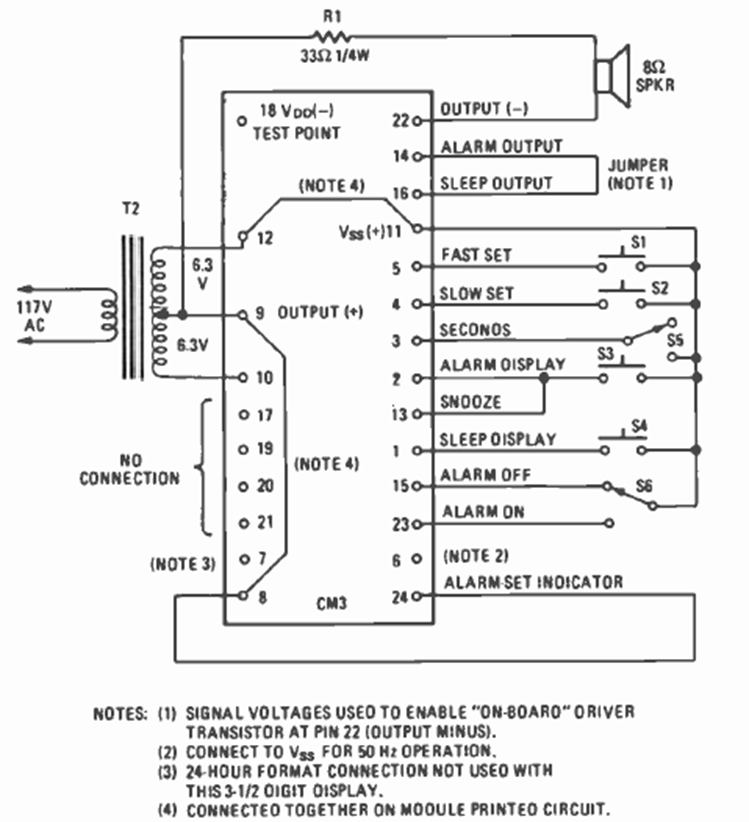

This circuit is from a Fairchild digital clock module shown in the March 1977 issue of Radio Electronics magazine. The circuit required a few external elements, including a common transformer.
