SCR Visual alarm (CB24128E)

Details
Written by: Newton C. Braga

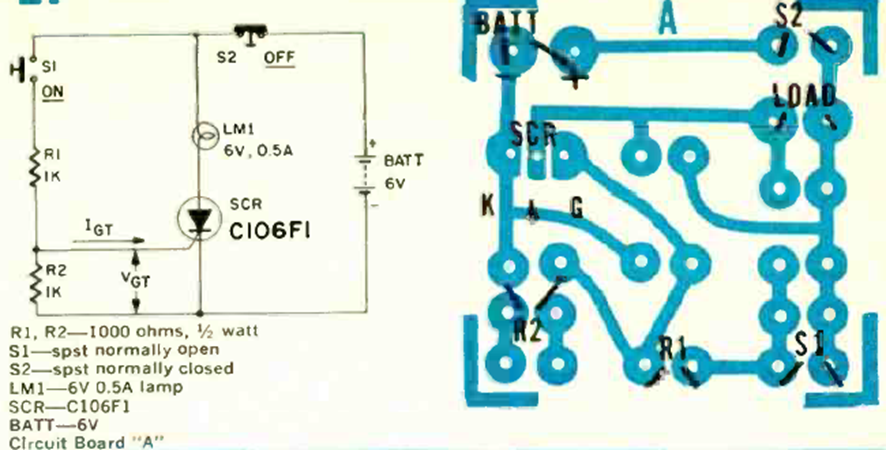

This circuit, with printed circuit board, is from an article in Radio Electronics magazine from May 1971. The circuit uses the C106 which was already a common component at the time.
