Graphic Equalizer (CB24554E)

Details
Written by: Newton C. Braga

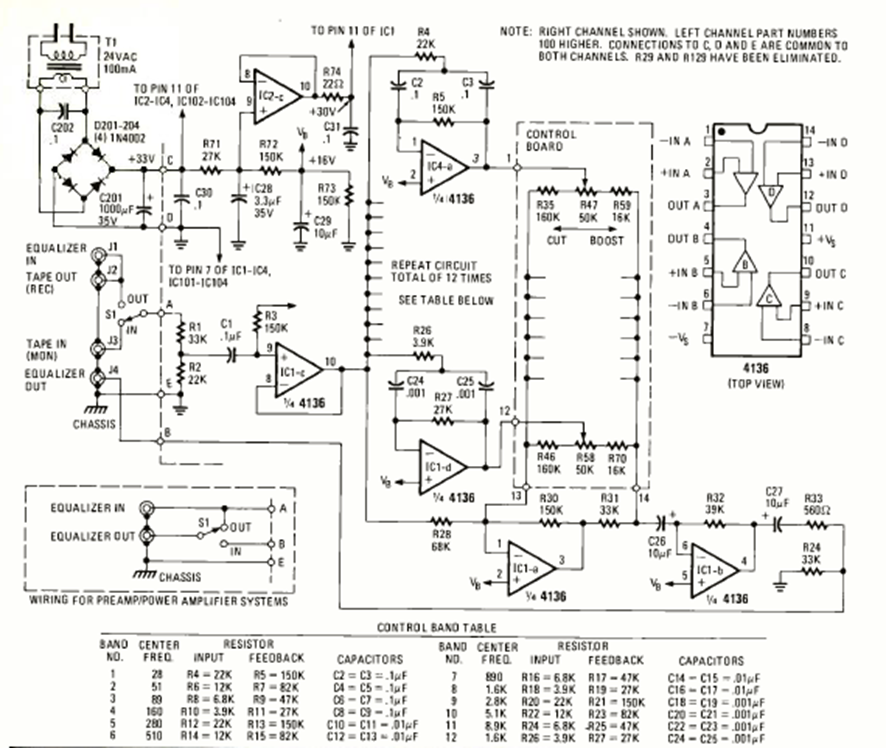

This equalizer was found in the May 1978 issue of Radio Electronics magazine. The component values ​​for the equalization networks are given next to the diagram.
