Trigger with PUT (CB24089E)

Details
Written by: Newton C. Braga

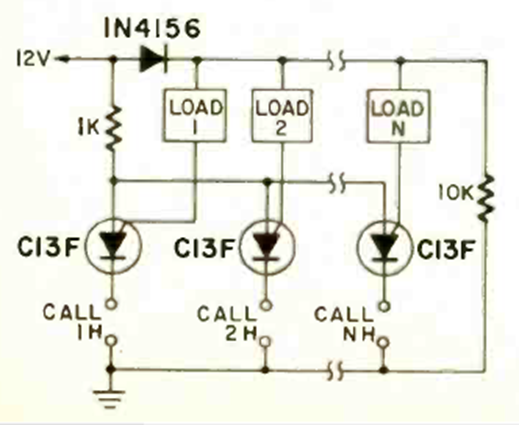

This circuit was found in the November 1970 Radio Electronics magazine. Its function is to trigger without load bounce.
