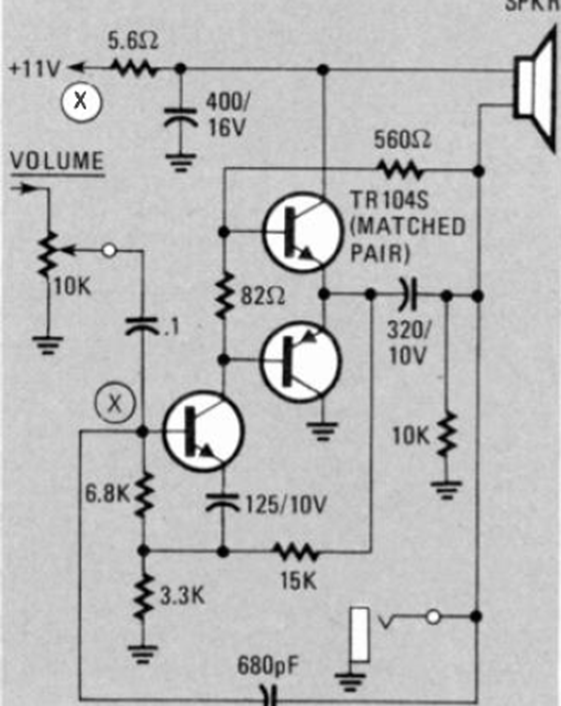

Originally this amplifier was used in the output of old televisions. The circuit is from Radio Electronics from November 1980. Transistors such as BD135 and BD136 can be used in the output.
Transistor Amplifier (CB24668E)
- Details
- Written by: Newton C. Braga
