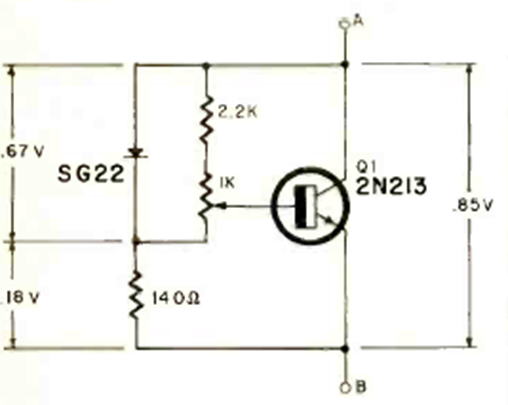

This circuit simulates a diode whose characteristics can be adjusted with a trimpot. The circuit is from a Radio Electronics from December 1971 and is used for circuits in which the diode is a critical component, such as the biasing of amplifiers.
Adjustable diode (CB24175E)
- Details
- Written by: Newton C. Braga
