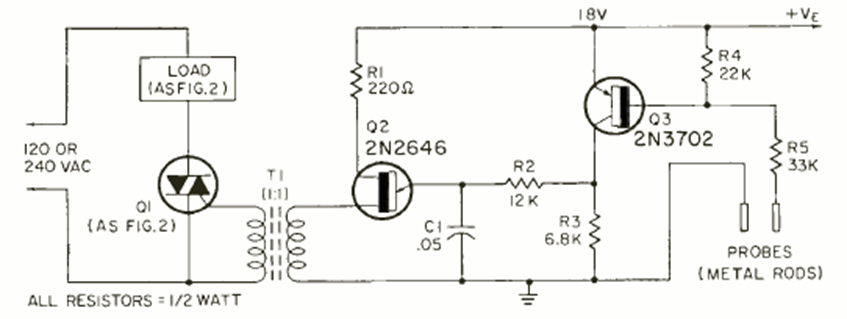

Water-Activated Triac Switch (CB24054E)

This circuit is from a July 1970 Radio Electronics magazine. The sensors are metal probes. The 18 V power source must be isolated from the mains.

| Clique na imagem para ampliar |

Diode Bridge Power Supply (CB4244E)
This is the traditional configuration of an unregulated bridge rectified power source. The circuit...
Two-Tone Buzzer (CB24121E)
This unijunction buzzer configuration appears in this section from many publications and sources. The...
Overtone Oscillator II (CB4585E)
In the figure we show a configuration for a crystal controlled overtone oscillator using a...
