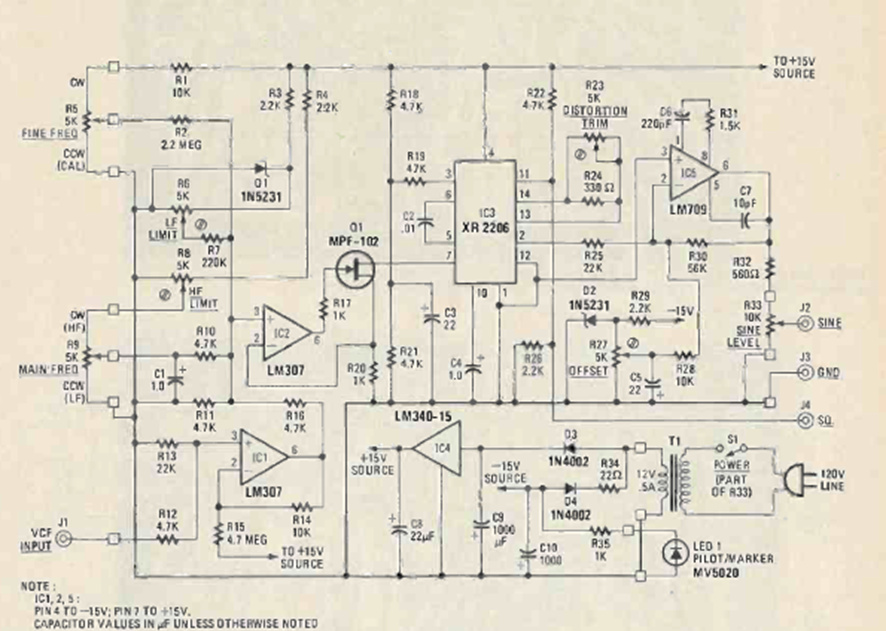

This sophisticated audio generator based on the XR2206 IC was featured in the May 1980 issue of Radio Electronics magazine. The circuit generates signals from 10 Hz to 50,000 Hz. Power supply is included.
| Clique na imagem para ampliar |
Audio Generator (CB24641E)
- Details
- Written by: Newton C. Braga
