Ramp Generator (CB24508E)

Details
Written by: Newton C. Braga

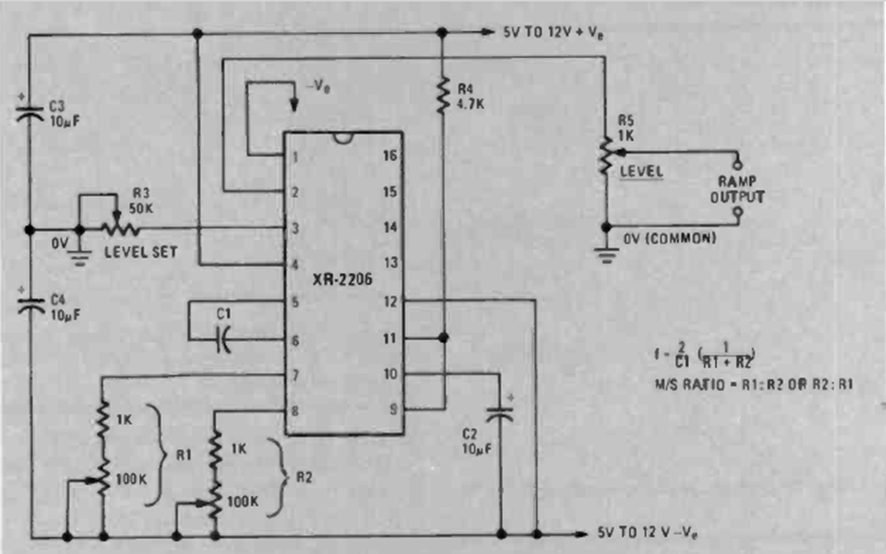

Employing the XR2206 IC, this circuit was found in the May 1977 issue of Radio Electronics magazine. The formula next to the diagram gives the component values ​​as a function of frequency.






| Clique na imagem para ampliar |
