Analog Tachometer (CB24412E)

Details
Written by: Newton C. Braga

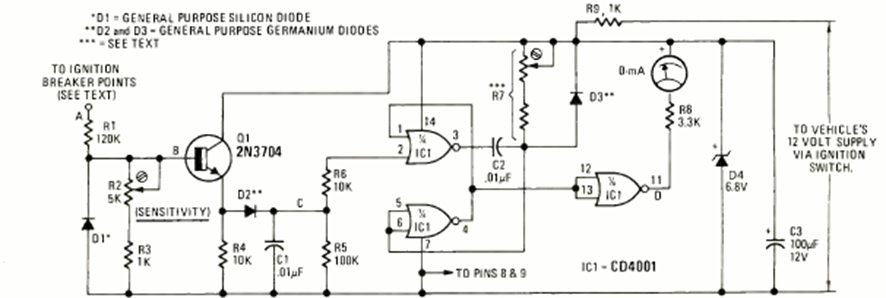

The speed indication of this circuit is made on an analog instrument. The circuit is used to count pulses (rpm) and was found in April 1976 Radio Electronics magazine.




| Clique na imagem para ampliar |
