Zero Frequency VCO (CB24870E)

Details
Written by: Newton C. Braga

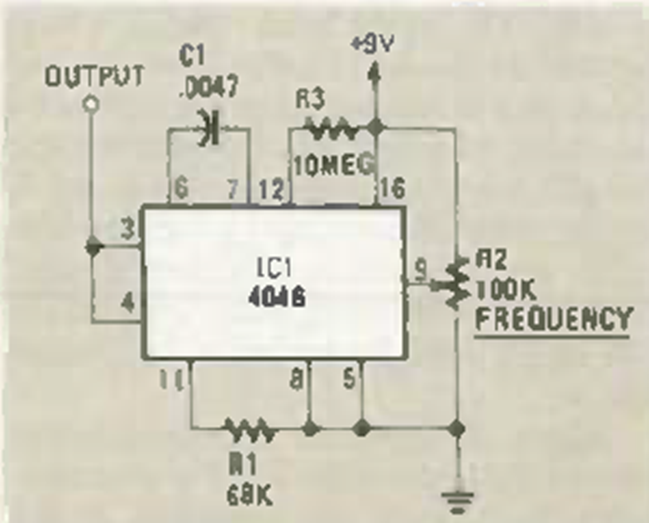

The frequency of this circuit can be varied from zero. The circuit uses the CMOS 4046 and was found in the November 1984 issue of Radio Electronics magazine. The base frequency is given by C1.




| Clique na imagem para ampliar |
