Pulse Generator XR2206 (CB24509E)

Details: Written by: Newton C. Braga

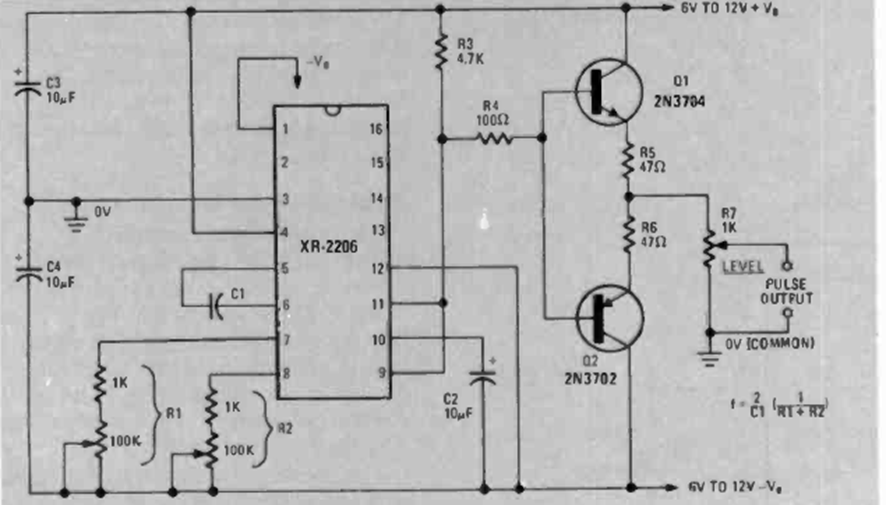

We found this circuit in the Radio Electronics magazine of May 1977. The circuit has the frequency given by the components according to the formula next to the diagram.

| Clique na imagem para ampliar |
