Continuity Tester (CB24871E)

Details
Written by: Newton C. Braga

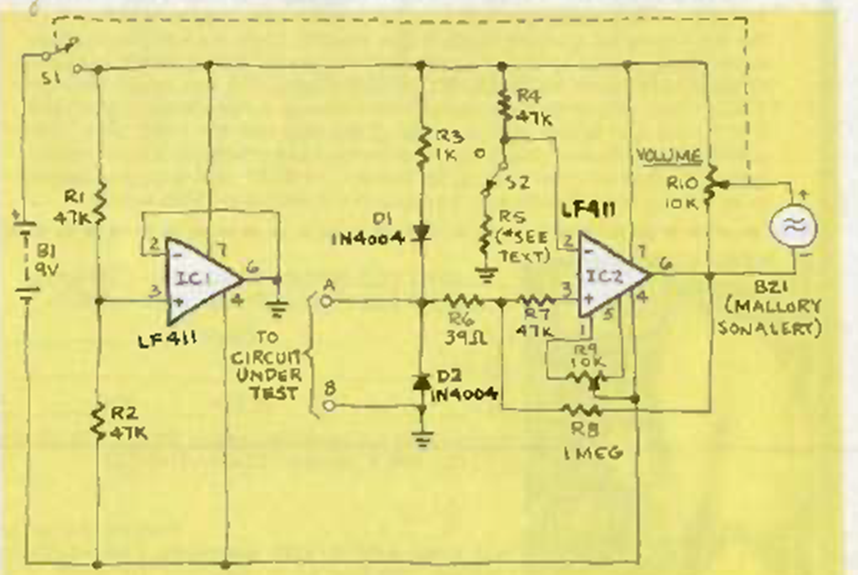

This sophisticated circuit with two LF411 operational amplifiers appeared in the November 1984 issue of Radio Electronics magazine. The circuit uses a Mallory buzzer as an indicator.
