10 A Regulator (CB24573E)

Details
Written by: Newton C. Braga

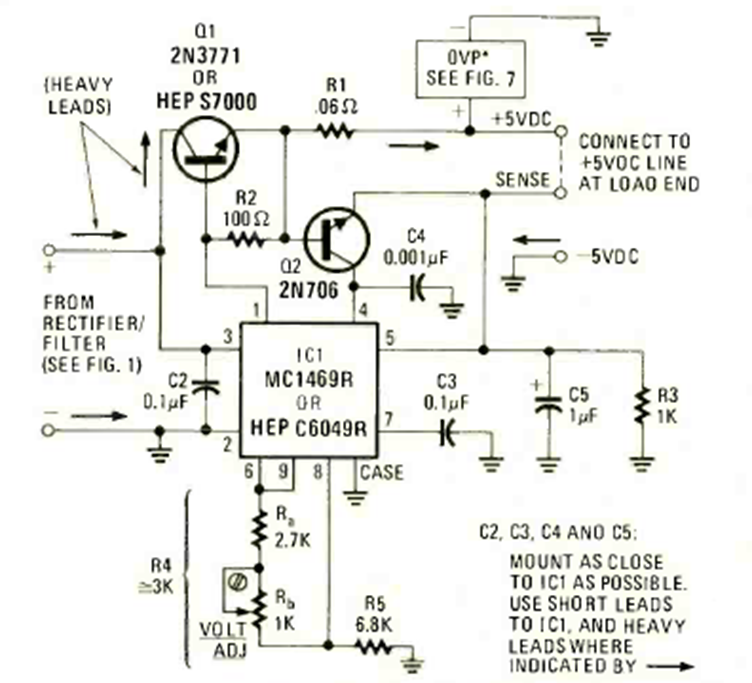

This 5 V circuit was found in December 1978 Radio Electronics magazine. The power transistor must be mounted on a good heat sink.
