RAM Backup (CB24835E)

Details
Written by: Newton C. Braga

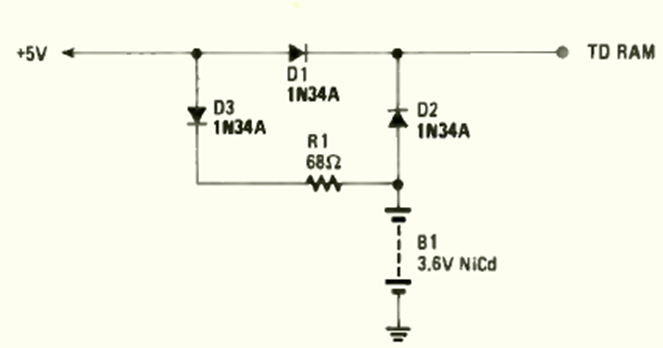

This circuit is from an August 1984 Radio Electronics magazine. It monitors the state of a RAM backup battery. Resistor R1 determines the battery charge.
