Antenna Splitter (CB24740E)

Details
Written by: Newton C. Braga

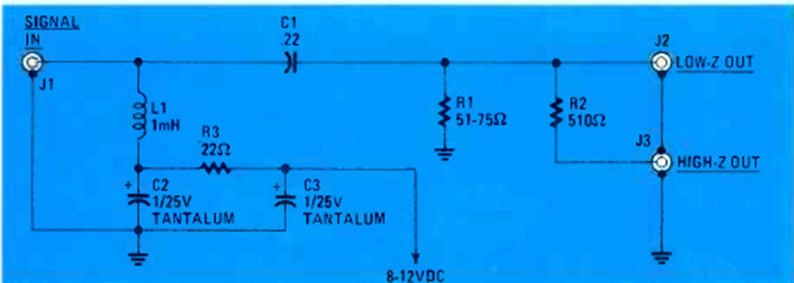

This circuit was found in the April 1983 issue of Radio Electronics magazine. Its purpose is to couple an antenna to two receivers without problems with coupling losses.




| Clique na imagem para ampliar |
