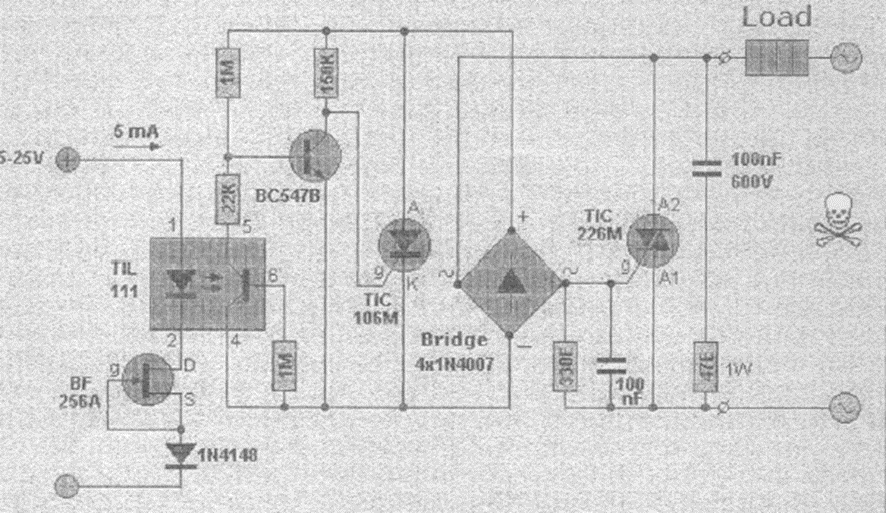

We found this circuit in a publication from the 1980s. The circuit drives a triac with isolation provided using an optical coupler. The LED of the coupler has a current control so that in the indicated voltage range the current is always 5 mA.
| Clique na imagem para ampliar |
