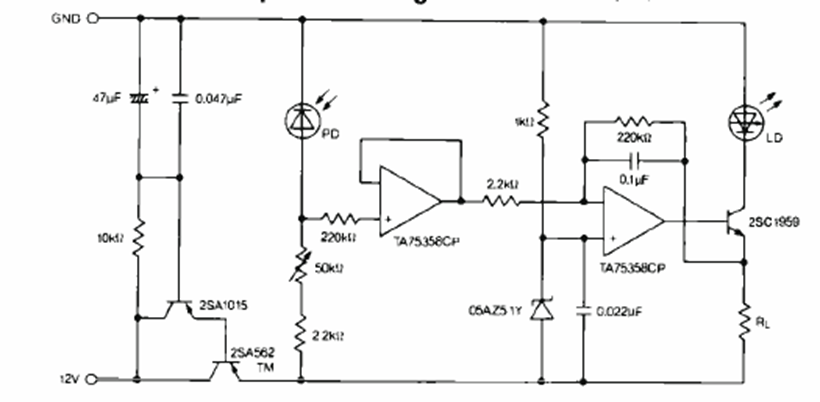

This is the application note circuit of the integrated circuit used with the LASER diode. The circuit was obtained from the Electronics Experimenter's Handbook of 1992.
| Clique na imagem para ampliar |
Laser Diode Driver (CB26184E)
- Details
- Written by: Newton C. Braga
