Dual 5V to 15V Converter (CB26057E)

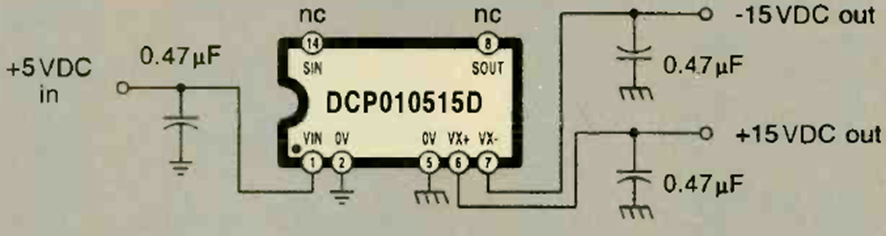

Using the integrated circuit DCP01051D this circuit was found in the magazine Electronics Now of August 1998. The maximum current is 50 mA.

| Clique na imagem para ampliar |

Logarithmic Amplifier II (CB19488E)
This configuration, which uses a transistorized circuit in the feedback, provides a logarithmic response...
Signal Injector and Follower (CB18811E)
This ultra-simple test circuit is of great use in any electronics bench. The power is supplied by a...
Magnetic resonance current limiter (CB8685E)
This circuit was found in a 1977 documentation. It limits the voltage from a source using zener...
