Passage Alarm (CB26162E)

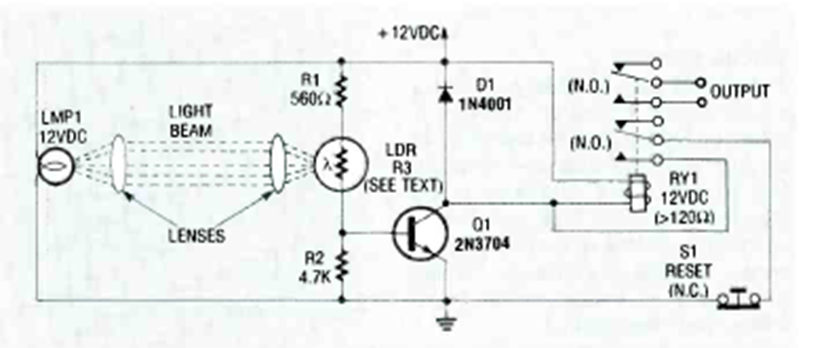

This simple optical alarm circuit was found in the 1991 Electronics Experimenter Handbook. The circuit uses a lamp as the emitter but can use LEDs.

| Clique na imagem para ampliar |
