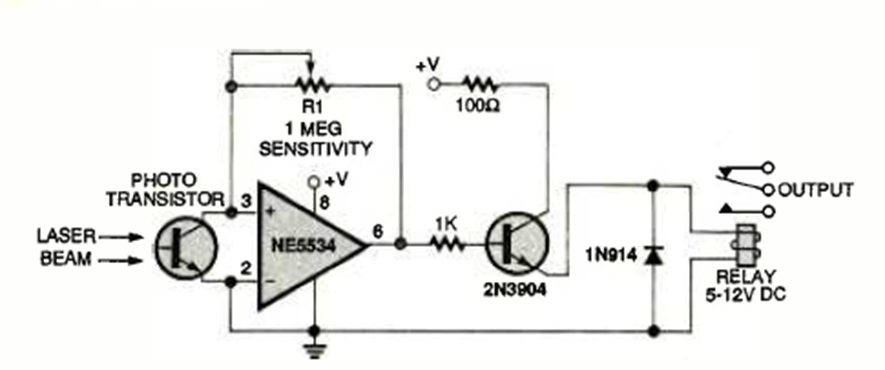

This circuit is more sensitive than the previous one, triggering when a laser beam that hits the phototransistor is cut off. The circuit is from the September 1996 issue of Electronics Now magazine.
| Clique na imagem para ampliar |
Highly Sensitive Laser Alarm (CB25977E)
- Details
- Written by: Newton C. Braga
