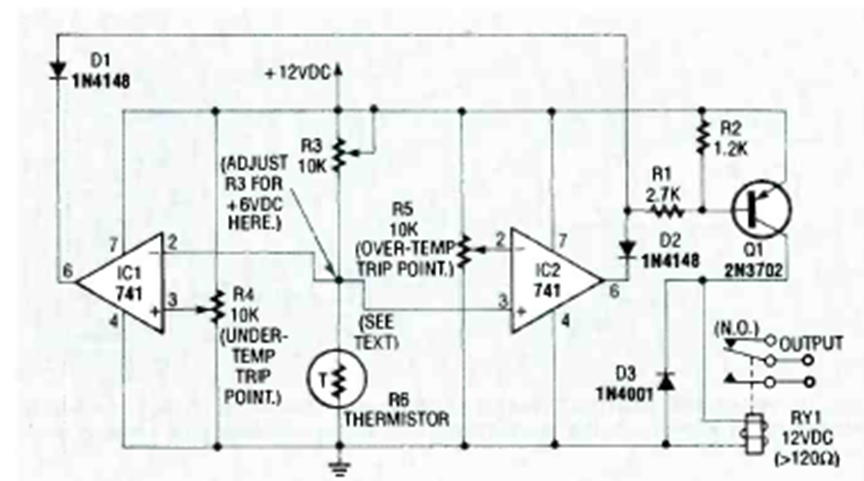

We found this circuit, which is actually a window discriminator, in the 1991 Electronics Experimenter Handbook. The circuit uses a thermistor as a sensor, detecting when the temperature goes outside a certain range of values.
