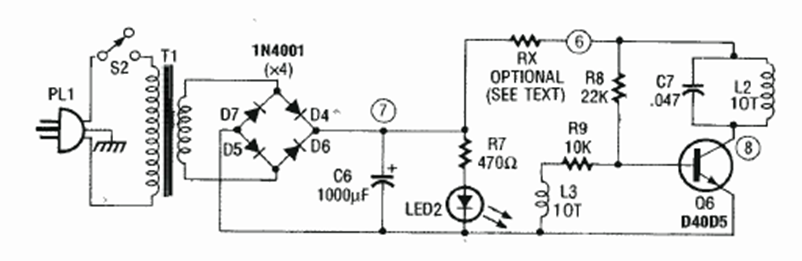

This circuit is for an inductive charger for the previous project, which can eventually be adapted for cell phones. The circuit is from an article in the Electronics Experimenter Handbook from 1992. The charging current is in the order of 100 to 125 mA.
