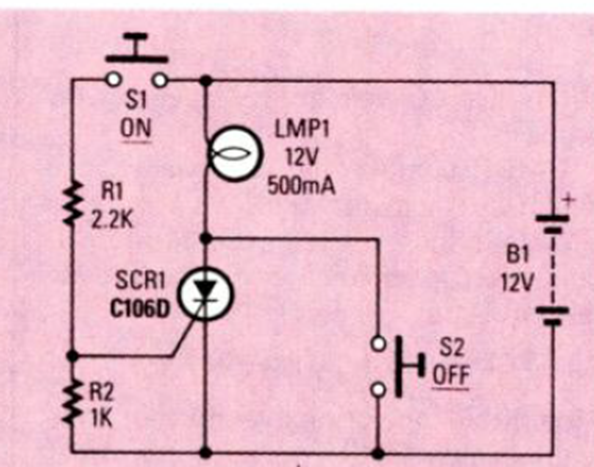

This is a circuit with two switches, one turns on and the other turns off for DC loads using SCR. Consider the 2 V voltage drop across the SCR. The circuit is from a Radio Electronics from September 1987.
On and Off with SCR (CB25060E)
- Details
- Written by: Newton C. Braga
