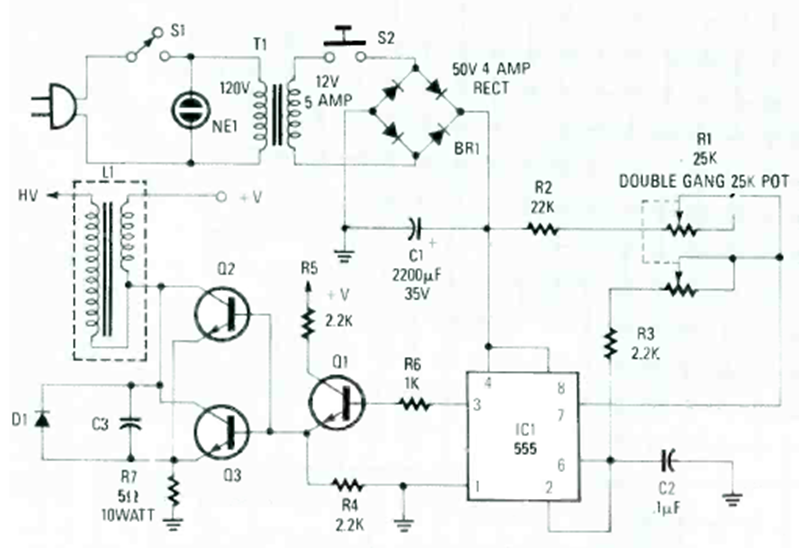

This very high voltage generator for photographing the aura was found in the special edition of Radio Electronics Eerimenter magazine from 1990. The circuit uses a car ignition coil.
| Clique na imagem para ampliar |
Kirlian Machine (CB26142E)
- Details
- Written by: Newton C. Braga
