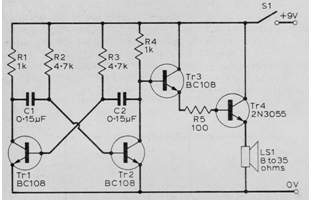

This circuit was found in a 1974 publication, but it can be mounted with BC548 transistors and powered with voltages from 6 to 12 V. The TR4 transistor must be mounted on a heat radiator. It generates an audio tone determined by C1 and C2. See in the math section for electronics how to calculate these components for the desired frequency.
