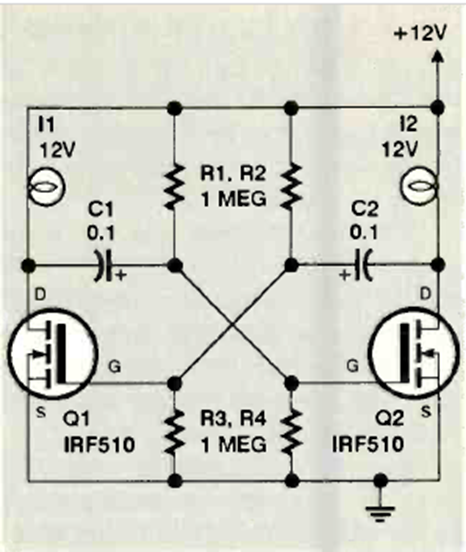

This circuit makes two lamps (or LEDs) blink at a speed that depends on C1 and C2. Any MOSFET can be used. The circuit is from Electronics Now, December 1998.
Astable with MOSFET (CB26080E)
- Details
- Written by: Newton C. Braga
This circuit makes two lamps (or LEDs) blink at a speed that depends on C1 and C2. Any MOSFET can be used. The circuit is from Electronics Now, December 1998.
