1 kHz High Pass Filter (CB25997E)

Details
Written by: Newton C. Braga

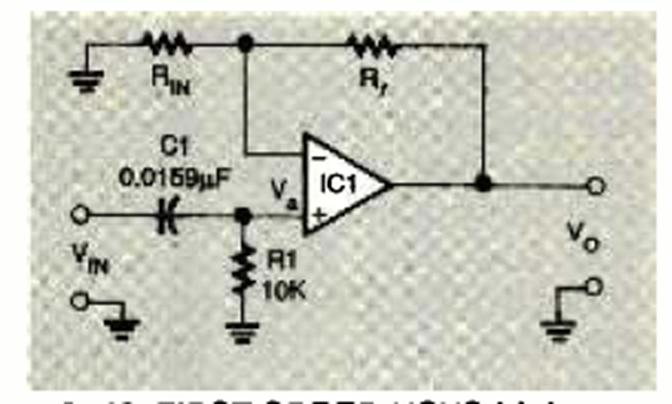

This first-order high pass filter is applicable to any operation requiring a dual power source. It was found in the March 1997 Electronics Now magazine.




| Clique na imagem para ampliar |
