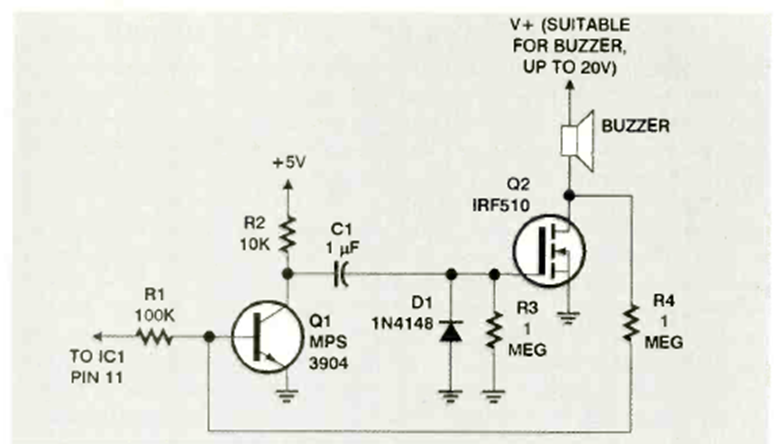

Indicated for activation by microcontrollers, this circuit was found in the Radio Electronics magazine of December 1987. The MOSFET can be of any type according to the buzzer.
| Clique na imagem para ampliar |
Buzzer circuit (CB25102E)
- Details
- Written by: Newton C. Braga
