5-Step Sine Wave Generator (CB24476E)

Details
Written by: Newton C. Braga

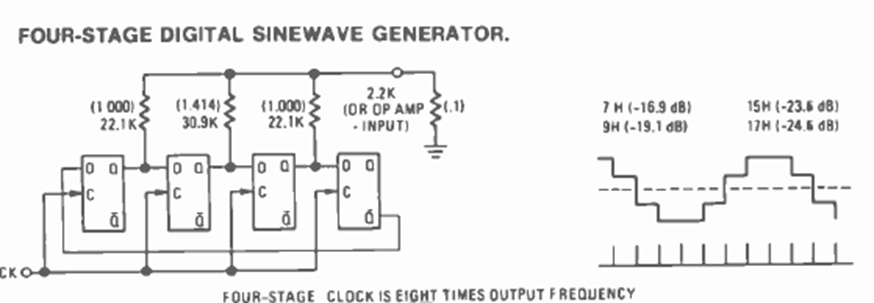

The figure shows how to generate a sinusoidal signal using 4 flip-flops. The circuit is from a Radio Electronics magazine from November 1976. The clock frequency is divided by 8.




| Clique na imagem para ampliar |
