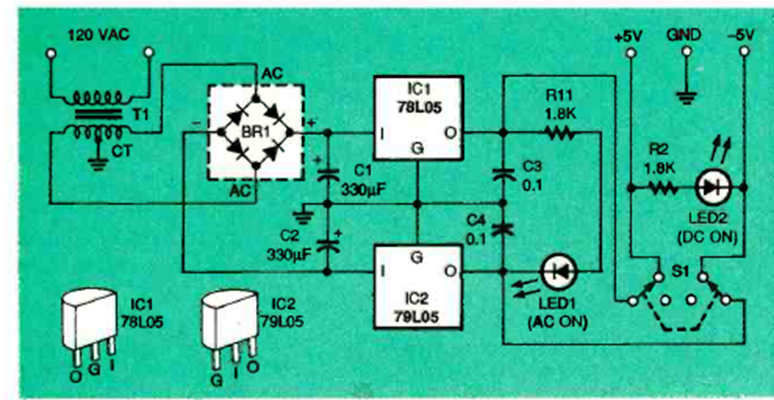

Dual 5V Power Supply (CB25970E)

Details
Written by: Newton C. Braga



This circuit was found in the June 1996 issue of Electronics Now. Integrated circuits must be equipped with heat sinks, and the maximum current is 1 A.




| Clique na imagem para ampliar |
