Second Order High Pass Filter (CB25995E)

Details
Written by: Newton C. Braga

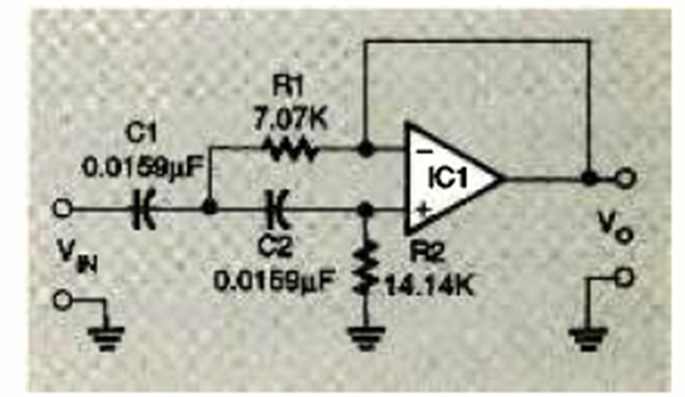

This 1 kHz filter was found in the March 1997 issue of Electronics Now magazine. The circuit is applicable to any operational amplifier with a dual power source.
